- Sensor:
- Pixel: 2 MP
- Sensor Size: 1/2.9″ CMOS
- Minimum Illumination: 0.005 lux (F1.6, AGC ON), 0 lux (IR on)
- Lens:
- Focus: 2.8 mm
- Lens Mount: M12
- Angle of View (H): 101.5°
- Angle of View (V): 56.9°
- Angle of View (D): 117.4°
- Illuminator:
- Illuminator Number: One IR illuminator
- Illumination Distance: 30m
- Lifetime: ≥ 60,000 hours
- Video:
- Resolution:
- 1080P: 1920(H) × 1080(V)
- 720P: 1280(H) × 720(V)
- Frame Rate:
- TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
- AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
- CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
- CVBS: PAL, NTSC
- Shutter Time: PAL: 1/25s–1/50000s, NTSC: 1/30s–1/50000s
- Resolution:
- Image:
- Exposure Mode: Four modes (Global, BLC, HLC, DWDR)
- Day/Night: Three modes (Auto, Day, Night)
- Digital Noise Reduction: 2D/3D
- White Balance: Auto (default), Manual
- WDR: DWDR
- Smart IR: Support
- Flip: Supports 180° horizontal flip, 180° vertical flip
- Digital Defog: Support
- Audio:
- Built-in Mic: Support
- Camera Audio:
- TVI: 1080P@25fps, 1080P@30fps
- CVI: 1080P@25fps, 1080P@30fps
- Interface:
- Power Interface: 5.5mm power interface
- Video Output: BNC, supports TVI/AHD/CVI/CVBS
- Operating Environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4 kV for power, 4 kV for video output interfaces
- Ingress Protection: IP67
- IK Rating: IK10
- General:
- Power: DC 12V ± 25%
- Power Consumption: Max 3.3W
- Mount: Wall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
- Dimensions: Φ109mm × 83mm (diameter × height)
- Material: Metal
- Weight: 372g (0.82lb)

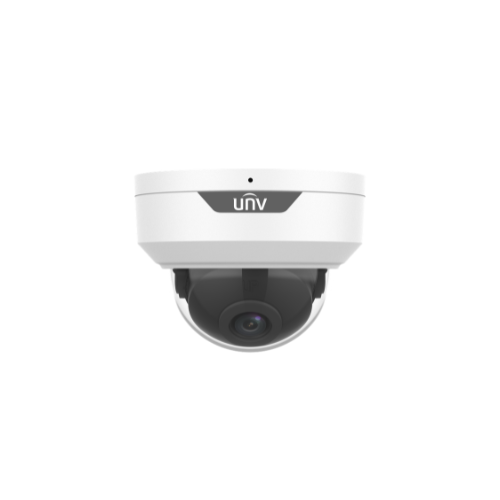

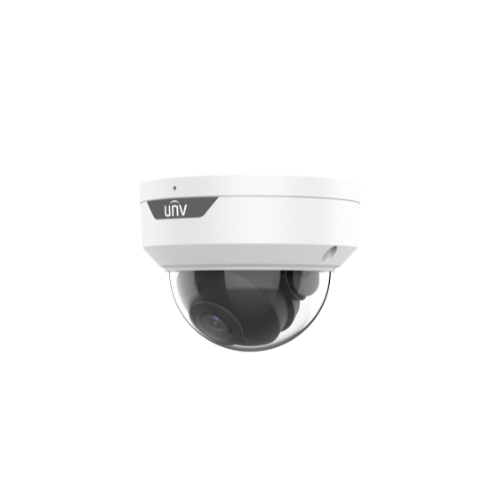

UNI Cam 2MP 2.8mm Light Hunter HD IR Fixed Dome Analog Cam UAC-D122-AF28M
2MP LightHunter Fixed IR Dome Analog Camera
• High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal base and metal housing
• 3-Axis
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal base and metal housing
• 3-Axis
