- Sensor:
- Pixel: 5 MP
- Sensor Size: 1/2.7″
- Minimum Illumination: 0.005 lux (F1.4, AGC ON), 0 lux (white light on)
- Lens:
- Lens: 2.8 mm
- Lens Mount: M12
- Angle of View (H): 111.5°
- Angle of View (V): 58.9°
- Angle of View (D): 134.8°
- Illuminator:
- Illuminator: Two white-light illuminators
- Illumination Distance: 40m
- Lifetime: ≥ 60,000 hours
- Video:
- Resolution:
- 5MP@25fps: 2880(H)×1620(V)
- 5MP@20fps: 2592(H)×1944(V)
- 5MP@12.5fps: 2592(H)×1944(V)
- 4MP: 2560(H)×1440(V)
- 1080P: 1920(H)×1080(V)
- Frame Rate:
- TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVBS: PAL/NTSC
- Shutter Time: PAL: 1/25s-1/50000s, NTSC: 1/30s–1/50000s
- Resolution:
- Image:
- Exposure Mode: Four modes (Global, BLC, HLC, DWDR)
- Day/Night: 24/7 color images
- Digital Noise Reduction: 2D
- White Balance: Auto (default), Manual
- WDR: DWDR
- Flip: Supports 180° horizontal flip, 180° vertical flip
- Audio:
- Microphone: Built-in Mic
- Camera Audio: TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps, CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
- Interface:
- Power: 5.5mm power interface
- Video Output: BNC, supports TVI/AHD/CVI/CVBS
- Operating Environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ≤ 95% (non-condensing)
- Surge Protection: 4 kV
- Ingress Protection: IP67
- General:
- Power: DC12V (±25%), with reverse polarity protection. Max 3.28W
- Mount: 3D bracket supplied, surface mount (default), optional junction box
- Dimensions: 157.4mm × 66.5mm × 66.5mm (L × W × H)
- Material: Metal
- Weight: 279g (0.62lb)
- Certification:
- CB, CE, FCC, UL

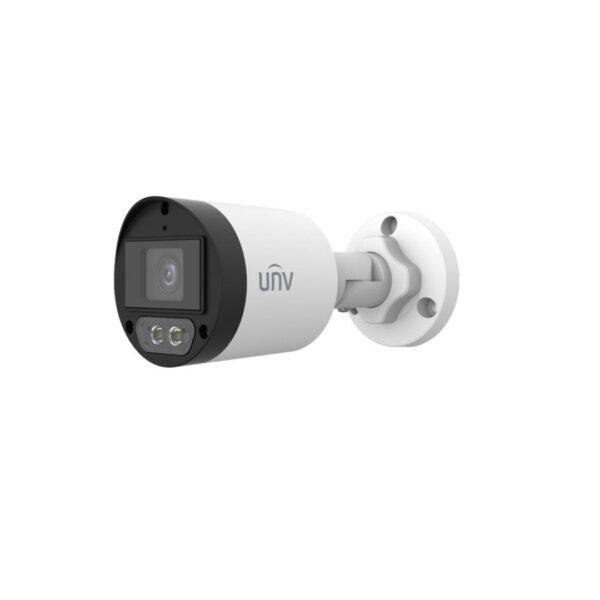

UNI 5MP 2.8mm Color Hunter HD Fixed Mini Bullet Analog Cam UAC-B125-AF28M-W
5MP ColorHunter HD Fixed Mini Bullet Analog Camera
• 5MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal front face and housing
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal front face and housing
