- Video/Audio Input:
- IP Video Input: 2-ch
- Analog Video Input: 4-ch, BNC
- Max IP Video Input: 6-ch
- Supported Analog Camera Types: AHD, TVI, CVI, CVBS
- Video/Audio Output:
- HDMI Output: 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- VGA Output: 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
- Live View Display: 1/4/6/8/9
- Encoding/Decoding:
- Recording Resolution: 1080P Lite/720P/D1
- Recording Frame Rate: Main stream: 1080P Lite@25fps, Sub stream: D1@25fps
- Audio Sample Rate: 8 kHz, 16 bit per channel
- Decoding Capability: Analog: 4 x 1080P Lite@25, 4 x 720P@30; IP: 1 x 6MP@20, 2 x 1080P@30
- Network:
- Incoming Bandwidth: 24Mbps (Up to 32Mbps after all analog channel conversion)
- Outgoing Bandwidth: 48Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
- Smart Features:
- Analog Smart by XVR: Ultra Motion Detection (UMD)
- VCA Search: Behavior Search
- Smart Functions by XVR: 4-ch (UMD)
- Alarm:
- General Alarm: Motion
- Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
- Hard Disk:
- SATA: 1 SATA interface
- Capacity: Up to 6 TB for each HDD
- External Interface:
- Network Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet Interface
- USB: 2 × USB2.0 (Rear panel)
- Power Supply: DC 12 V/1.5 A
- Working Environment:
- Working Temperature: -10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
- Working Humidity: ≤ 90% RH (non-condensing)
- Power Consumption (without HDD): ≤ 10W
- Dimensions:
- Weight (without HDD): ≤ 0.6 Kg (1.32lb)
- Dimensions: 190mm × 202mm × 42mm (7.5″ × 7.9″ × 1.6″)
- Certification:
- CE, FCC, UL, RoHS, WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
- FCC: Part15 Subpart B

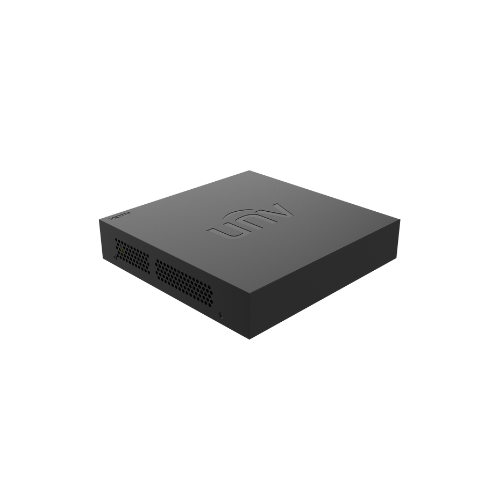

XVR UNI 4 CHANNELS 2MP LIVE 2MP PLAYBACK XVR301-04F
XVR301-04F is a versatile video recorder with support for analog and IP cameras, delivering high-quality resolution and video output.
- IP Video Input: 2-ch
- Analog Video Input: 4-ch, BNC
- Maximum IP Video Input: 6-ch
- Recording Resolution: 1080P Lite/720P/D1
- Bandwidth: Incoming 24Mbps, Outgoing 48Mbps
