- Sensor:
- Pixel: 2 MP
- Sensor Size: 1/2.9″ CMOS
- Minimum Illumination: 0.005 lux (F1.6, AGC ON), 0 lux (white light on)
- Lens:
- Focus: 2.8 mm
- Lens Mount: M12
- Angle of View (H): 101.5°
- Angle of View (V): 56.9°
- Angle of View (D): 117.4°
- Illuminator:
- Illuminator Number: Two white-light illuminators
- Illumination Distance: 40m
- Lifetime: ≥ 60,000 hours
- Video:
- Resolution:
- 1080P: 1920(H) × 1080(V)
- 720P: 1280(H) × 720(V)
- Frame Rate:
- TVI: 1080P@25fps (default), 1080P@30fps, 720P@25fps, 720P@30fps
- AHD: 1080P@25fps, 1080P@30fps, 720P@25fps, 720P@30fps
- CVI: 1080P@25fps, 1080P@30fps, 720P@25fps, 720P@30fps
- CVBS: PAL, NTSC
- Shutter Time: PAL: 1/25s–1/50000s, NTSC: 1/30s–1/50000s
- Resolution:
- Image:
- Exposure Mode: Four modes (Global, BLC, HLC, DWDR)
- Day/Night: 24/7 color images
- Digital Noise Reduction: 2D/3D
- White Balance: Auto (default), Manual
- WDR: DWDR
- Flip: Supports 180° horizontal flip, 180° vertical flip
- Digital Defog: Support
- Audio:
- Built-in Mic: Support
- Camera Audio: TVI: 1080P@25fps, 1080P@30fps; CVI: 1080P@25fps, 1080P@30fps
- Interface:
- Power Interface: 5.5mm power interface
- Video Output: BNC, supports TVI/AHD/CVI/CVBS
- Operating Environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4 kV for power, 4 kV for video output interfaces
- Ingress Protection: IP67
- General:
- Power: DC12V ± 25%
- Power Consumption: Max 3.12W
- Mount: Wall Mount, Pole Mount, Corner Mount, Pendant Mount
- Dimensions: Φ111mm × 96mm (diameter × height)
- Material: Metal + Plastic
- Weight: 356g (0.79lb)

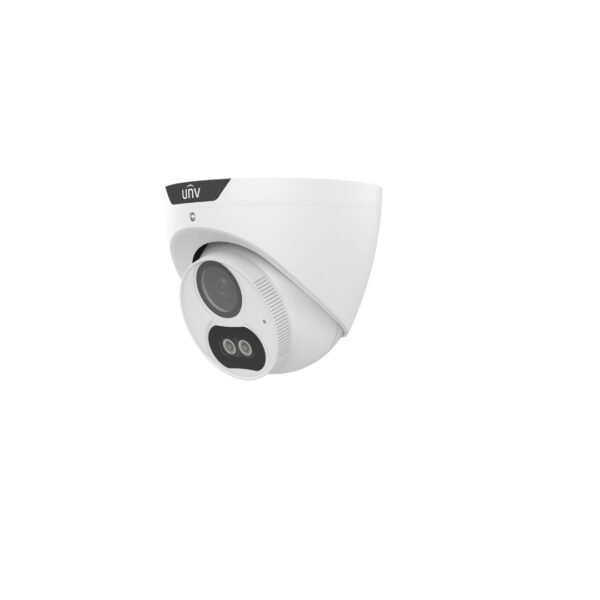

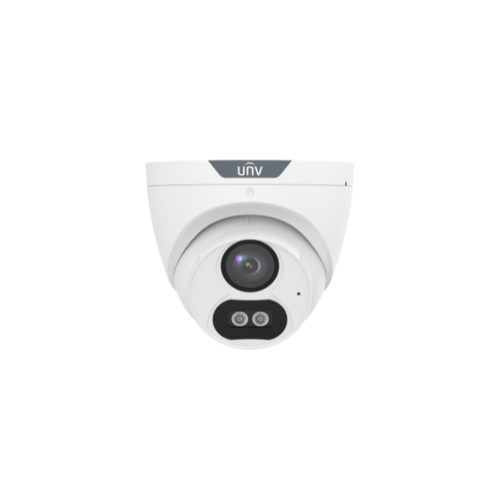

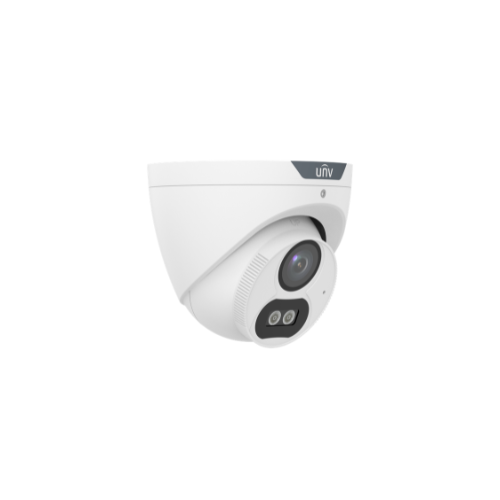

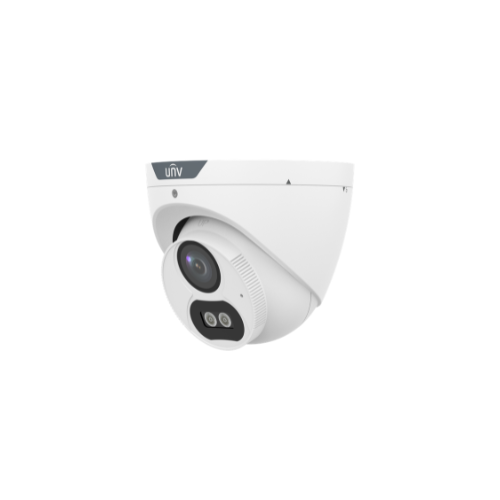

UNI 2MP 2.8mm Color Hunter HD Fixed Turret Analog Cam UAC-T122-AF28M-W
2MP ColourHunter Fixed Warm Light Turret Analog Camera
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal front face and housing
• 3-Axis
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal front face and housing
• 3-Axis
