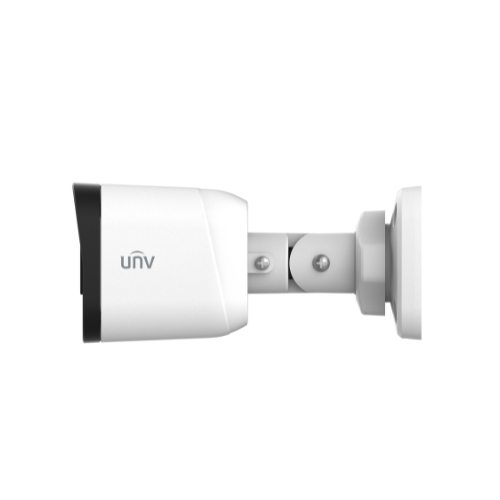

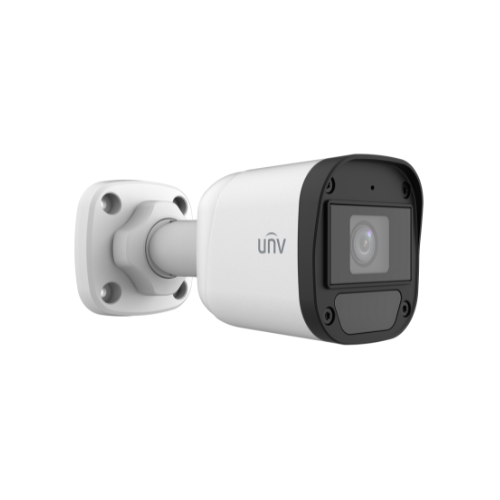

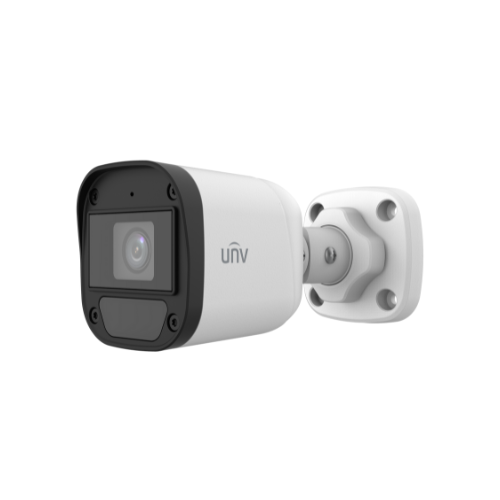

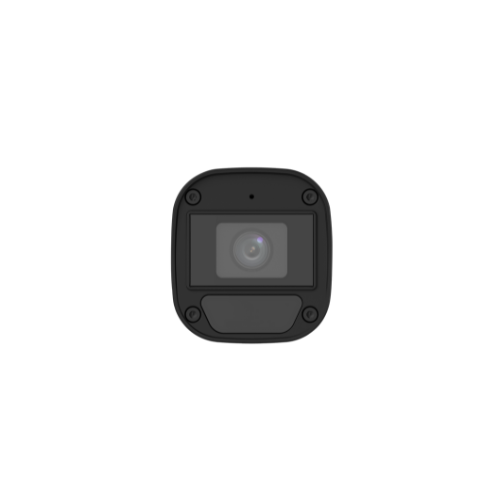

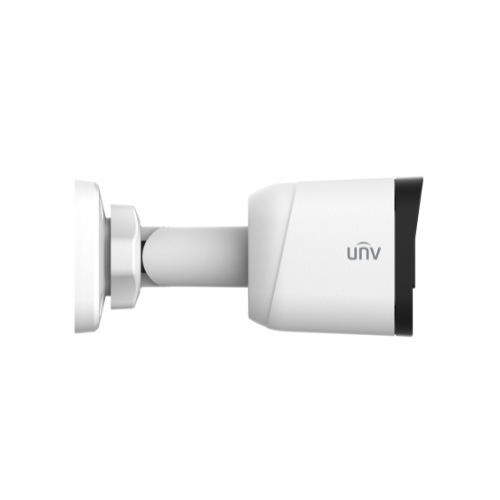

Cam UNI Analogue 2MP 2.8mm Out Bullet UAC-B112-F28

UAC-B112-F28

• Sensor:
  • Pixel: 2 MP
  • Sensor Size: 1/3.0″ CMOS
  • Min. Illumination: 0.01 lux (F1.6, AGC ON), 0 lux (white light on)
• Lens:
  • Focus: 2.8 mm
  • Lens Mount: M12
  • Angle of View (H): 100.9°
  • Angle of View (V): 56.5°
  • Angle of View (D): 121.8°
• Illuminator:
  • Illuminator Number: One white-light illuminator
  • Illumination Distance: 20m
  • Lifetime: ≥ 60000 hours
• Video:
  • Resolution: 1080P (1920×1080), 720P (1280×720)
  • Frame Rate:
    • TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
    • AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
    • CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
    • CVBS: PAL, NTSC
  • Shutter Time: PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s
• Image:
  • Exposure Mode: Four modes (Global, BLC, HLC, DWDR)
  • Day/Night: 24/7 color images
  • Digital Noise Reduction: 2D/3D
  • White Balance: Auto (default), Manual
  • WDR: DWDR
  • Flip: Supports 180° horizontal flip, 180° vertical flip
• Interface:
  • Power Interface: 5.5 mm Power Interface
  • Video Output: BNC, supports TVI/AHD/CVI/CVBS
• Operating Environment:
  • Temperature: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
  • Humidity: ≤ 95% RH (non-condensing)
  • Surge Protection: 4 KV for power, 4 KV for video output interfaces
• General:
  • Power: DC 12 V ± 25%
  • Power Consumption: MAX 2.4W
  • Mount: Corner Mount, Pole Mount
  • Dimensions: 142mm × 63mm × 65mm (L×W×H)
  • Material: Graphene + Plastic
  • Weight: 145g (0.32lb)
• OSD Menu Language: 11 languages, including English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
• Certification:
  • EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
  • Safety: CE-LVD (EN 62368-1)
  • Environment: CE-RoHS (2011/65/EU; (EU) 2015/863), WEEE (2012/19/EU)
  • Protection: IP67 (IEC 60529)
