- Sensor:
- Pixel: 5 MP
- Sensor Size: 1/2.7″
- Minimum Illumination: 0.02 lux (F1.6, AGC ON), 0 lux (white light on)
- Lens:
- Lens: 2.8 mm
- Lens Mount: M12
- Angle of View (H): 110.0°
- Angle of View (V): 57.0°
- Angle of View (D): 130.0°
- Illuminator:
- Illuminator: One white-light illuminator
- Illumination Distance: 20m
- Lifetime: ≥ 60,000 hours
- Video:
- Resolution:
- 5MP@25fps: 2880(H)×1620(V)
- 5MP@20fps: 2592(H)×1944(V)
- 5MP@12.5fps: 2592(H)×1944(V)
- 4MP: 2560(H)×1440(V)
- 1080P: 1920(H)×1080(V)
- Frame Rate:
- TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVBS: PAL, NTSC
- Shutter Time: PAL: 1/25s-1/50000s, NTSC: 1/30s–1/50000s
- Resolution:
- Image:
- Exposure Mode: Four modes (Global, BLC, HLC, DWDR)
- Day/Night: 24/7 color images
- Digital Noise Reduction: 2D
- White Balance: Auto (default), Manual
- WDR: DWDR
- Flip: Supports 180° horizontal flip, 180° vertical flip
- Interface:
- Power: 5.5 mm power interface
- Video Output: BNC, supports TVI/AHD/CVI/CVBS
- Operating Environment:
- Temperature: -30°C to 60°C (-22°F to 140°F)
- Humidity: ≤ 95% (non-condensing)
- Surge Protection: 4 KV
- Ingress Protection: IP67
- General:
- Power: DC 12V (±25%), with reverse polarity protection and surge protection, Max 2.4W
- Mount: Surface mount (default), optional backbox, wall mount bracket
- Dimensions: Φ118mm × 96mm (diameter × height)
- Material: Plastic
- Weight: 205g (0.452lb)
- Certification:
- CB, CE, FCC

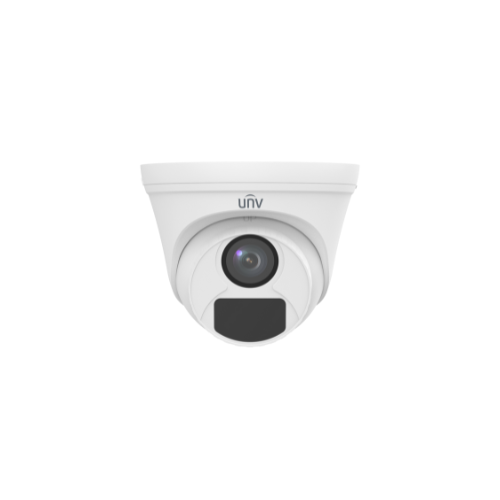

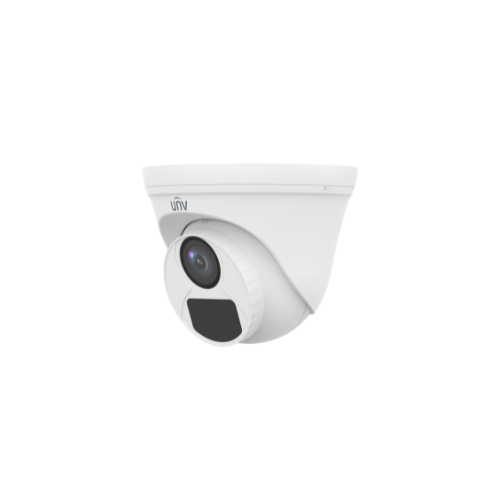

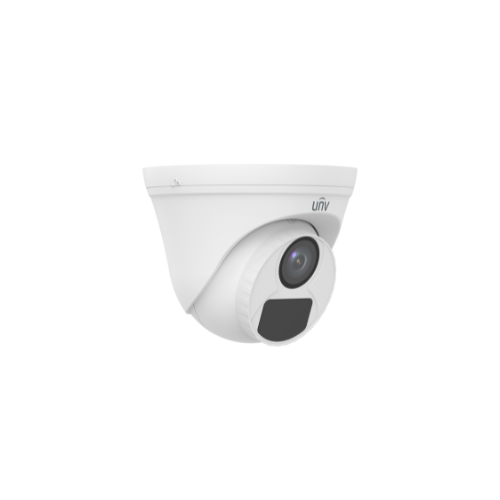

UNI Analogue 5MP 2.8mm In Dome UAC-T115-F28
5MP ColourHunter HD Fixed Turret Analog Camera
• 5MP high quality image
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3-Axis
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• 3-Axis
