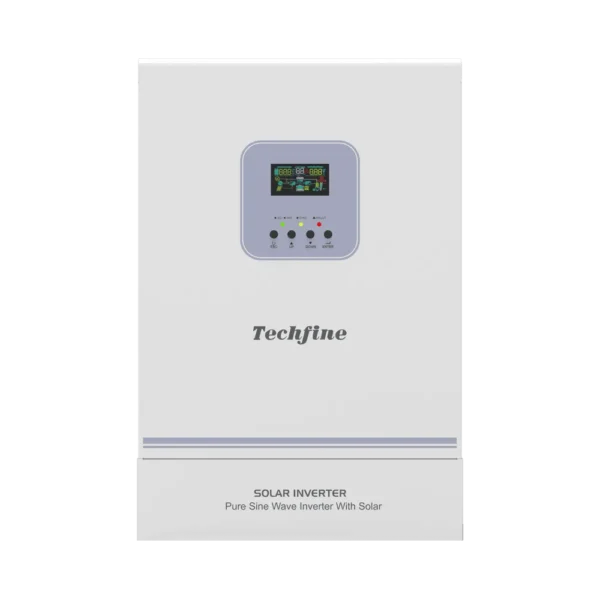

Techfine inverter 3600w 24v

Model	GA3024EMH
Output rated power	3600W
Input
Input system type	L+N+PE
Frequency range	220/230/240VAC
Voltage range	90-280VAC+3V (Normal mode )170-280VAC+3V(UPS mode)50Hz/60Hz(Self-adaption)
Frequency range	50Hz/60Hz(Self-adaption)
Output
Output voltage	220/230/240VAC+5%
Output frequency	50/60Hz+0.1%
Waveform	Pure sine wave
Switching time (can be set)	Computer equipment10ms，Domestic appliance 20ms
Peak power	6000VA
Overload capacity	Battery mode:10.5s@110%~150% Load
Peak efficiency (battery mode)	>94%
Battery
Rated voltage	24VDC
Constant voltage charging voltage (can be set)	28.2VDC
Floating charging voltage (can be set)	27VDC
Charge
PV charging method	MPPT
PV maximum input power	3600W
MPPT input voltage range	30-400VDC
Maximum PV input voltage	400VDC
Maximum PV charging current	80A
Maximum charging current	80A
Show
LCD interface	Operation mode / load / input / output, etc
Interface	Baud rate2400
RS232	Lithium batteryBMSpact’olcatigtocard, WiFl card,
Extended slot communication interface	No parallel function
Parallel interface
Environmental parameters
Operating environmenthumidity	0~40C
Operating environmenthumidity	20%~95%(No condensation
Storage temperature	-15~60C
Elevation	The altitude shall not exceed 1000m, and over 1000m dropthe highest 4000m,refer to 1EC62040
Noise	≤50db
Physical parameters
Depth x width x height (mm)	399x285x118
Weight (for reference) KG	6
