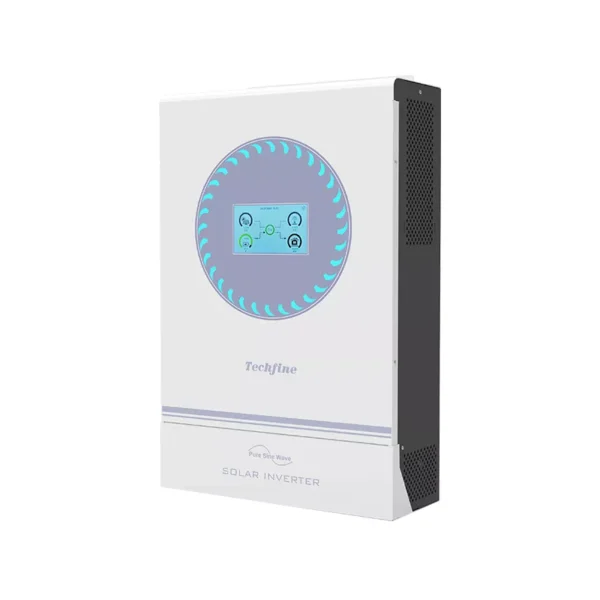

BH Series 5.5KW Touchscreen High Frequency Hybrid Solar Inverter: Powerful, Flexible, Efficient
The BH Series solar inverter 5.5kw is built to maximize energy efficiency with its dual on-grid and off-grid capability, making it an adaptable choice for various solar setups. Featuring a 5.5kw hybrid solar inverter design with an intuitive touch screen, this 5500w hybrid inverter enables seamless control and precise parameter monitoring.
Designed for 48V solar inverter configurations, it offers a high-quality energy solution with enhanced power output in PV mode. With both primary and auxiliary AC voltage options, it provides dependable, ample power across various applications. The stylish RGB indicator adds a modern touch, and the frosted white design blends easily into any environment.
Advanced EMI filtering and anti-interference technology make the BH Series 48 volt solar inverter ideal for reliable, uninterrupted performance. Available in multiple models—BH3024SMH, BH3624SMH, BH5548SMH, EA5548EMH, BH6248SMH, and BH11048SMH—it provides versatile, high-frequency solar power tailored to meet today’s energy needs.
| Model | GA5548SMH | |
| Input Formation | L+N+PE | |
| ACInput | 220/230/240VAC | |
| Input VoltageRange | 90-280VAC±3V(Normal Mode)185-264VAC±3V(UPS Mode） | |
| Frequency | 50/60Hz(Adaptive) | |
| Rated Power | 5500W | |
| DualOutput Power | 5500W | |
| Second Load Cut Off Voltage | 44V | |
| Second Load Return Voltage | 52V | |
| Output Voltage(AC） | 208/220/230/240VAC±5% | |
| Output Frequency | 50/60Hz±0.1% | |
| Output Wave | Pure Sine Wave | |
| Transfer Time(Adjustable） | 10ms for Computer Equipment, 20ms for Household Equipment | |
| Peak Power | 11000VA | |
| Overload Ability | Battery Mode : 21@102%~110% load 10s@110%-130% load 3s@130%-150% oad 400ms@>150% load | |
| Grid connected peration | Output Voltage | 208/220/230/240VAC±5% （Feed-in Grid Voltage Range:195-253VAC） |
| Grid Voltage Range | 195-253VAC | |
| Grid Frequency Range | 50/60Hz±0.1% (Feed-in Grid Frequency Range:49-51+1Hz/59-61+1Hz） | |
| Output Current | 23.9A | |
| Power Factor Range | ＞0.99 | |
| Peak Efficiency(Battery Model | ＞94% | |
| Rated Voltage | 24VDC | |
| Constant Charging Voltage | 28.2VDC | |
| Float Charging Voltage | 27VDC | |
| PV Charging Method | MPPT | |
| Max PVInput Power | 7500W | |
| PVInput Voltage Range | 60~500VDC | |
| MAX PV Input Voltage | 500VDC | |
| MAX PV Input Current | 27A | |
| MAX PV Charge Current | 100A | |
| MAX AC Charge Current | 60A | |
| MAX Charge Current | 100A | |
| LCD | Can display operating mode/load/input/output | |
| RS232 | 5PIN/Pitch2.54mmBaud Rate 2400 | |
| Expansion Slot communication Interface | Lithium Battery BMS Communication Card,WIFI2x5PIN/Pitch2.54mm | |
| ParallelInterface | Support Parallel | |
| Operating Temperature | 0℃~40℃ | |
| StorageTemperature | -15℃~60℃ | |
| Ork Altitude | No more than 1000m,lf1000m<,Rate power will lower,MAX 4000m, Refer | |
| Operating Environment Humidity | Non condensing | |
| Noise | ＜50dB | |
| L*W*H(mm） | 495*312*125mm | |
