- Panel Type: Monocrystalline (N-type)
- Nominal Power: 645 W
- Module Efficiency: 23.9%
- Number of Cells: 144
- Dimensions: approx. 2382×1134×30 mm
- Weight: 28.5 kg
- Temperature Coefficient (Pmax): -0.26%/°C
- Power Output: 645 W
- N-type HPDC technology reduces degradation and extends panel lifespan.
- Improved performance under high temperatures and low-light conditions.
- Enhanced resistance to PID and LID effects ensures stable energy output over the years.
- Durable construction with anodized frame and tempered glass, resistant to wind and snow loads.
Panel characteristicsManufacturerLONGI Solar
Country of manufactureChina

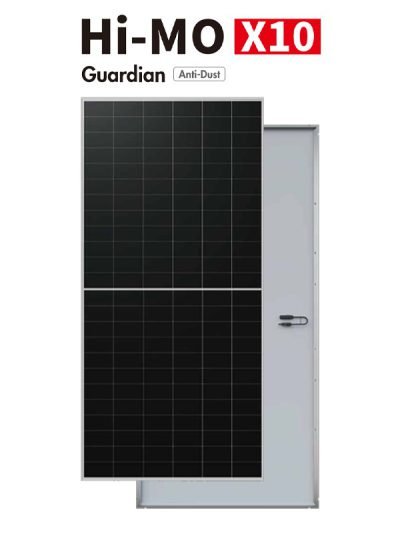

PANNEL LONGI HIMO x10 645w
-
Model
Hi-MO X10 Explorer LR7-72HVH-645M
Nominal power (Pmax/W)645
Open circuit voltage (Voc/V)53.80
Short circuit current (Isc/A)15.21
Optimum operating voltage (Vmp/V)44.46
Optimum operating current (Imp/A)14.51
Efficiency (%)23.9
Minimum operating temperature (‘С)-40°C
Maximum operating temperature (‘С)+85°C
Maximum system voltage (V)1500
Module fire safetyClass C
Maximum fuse rating25 A
Power tolerance0 ~ + 3%
Cell typeMono-crystalline
Number of elements144 (6*24)
Glass type3.2 mm High transmission, Antireflection Coating
FrameAnodized aluminum alloy
Distribution boxIP68
Cable4.0 mm2
ConnectorMC4
Temperature coefficient (Isc)+0.05%/℃
Temperature coefficient (Voc)-0.20 %/°C
Temperature coefficient (Pmax)-0.26 %/°C
Module nominal operating temperature45±2°C
Height (mm)2382
Width (mm)1134
Thickness (mm)30
Weight (kg)28.5
