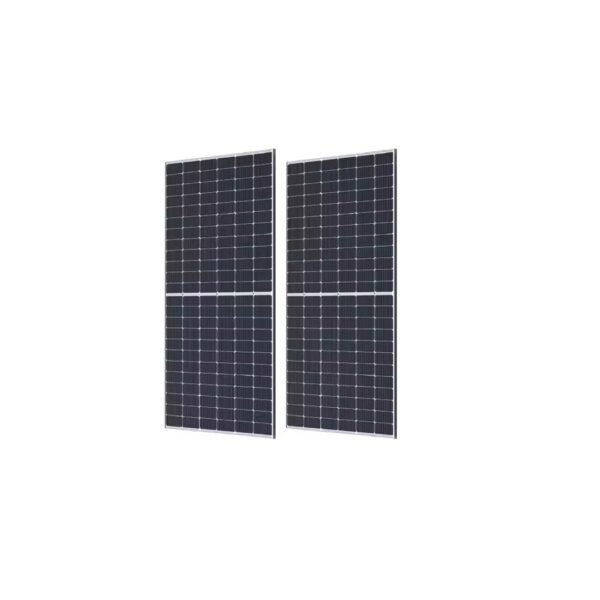

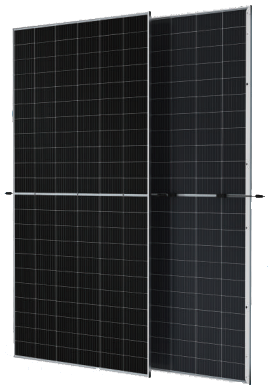

PANEL TRINA 575 N-TYPE

Module Specifications

• Module Dimensions: 2384 × 1303 × 35 mm
• Weight: 33.9 kg
• Frame: 35 mm Anodized Aluminum Alloy
• Glass: 3.2 mm High Transmission, AR Coated Heat Strengthened Glass
• Junction Box: IP 68 rated
• Cables:
  • Photovoltaic Technology Cable 4.0 mm²
  • Portrait: 280/280 mm (11.02/11.02 inches)
  • Landscape: 1400/1400 mm (55.12/55.12 inches)
• Connector: MC4-EVO2 / TS4
• Cell Orientation: 132 cells

Electrical Data (Standard Test Conditions – STC)

• Peak Power Watts – PMAX (Wp): 575 W
• Power Tolerance – PMAX (W): 0 ~ +5 W
• Maximum Power Voltage – VMPP (V): 41.30 V
• Maximum Power Current – IMPP (A): 13.94 A
• Open Circuit Voltage – VOC (V): 50.85 V
• Short Circuit Current – ISC (A): 14.16 A
• Module Efficiency – ηm (%): 21.1%
