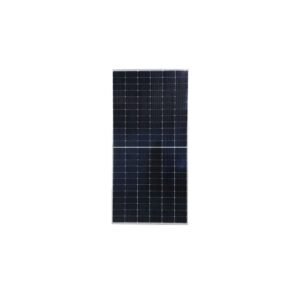

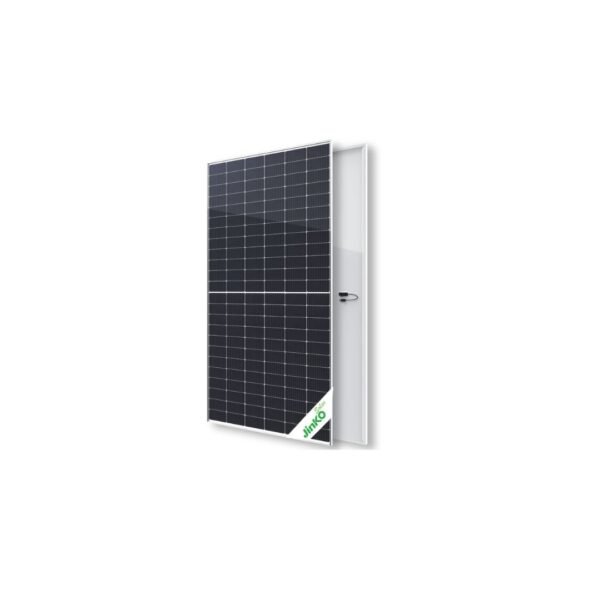

PANEL JINKO 565W N-TYPE

ELECTRICAL CHARACTERISTICS

Standard Test Conditions (STC)

• Model: JKM565M-72HL4(-V)
• Pmax (Maximum Power): 565W
• Vmp (Maximum Power Voltage): 41.21V
• Imp (Maximum Power Current): 13.71A
• Voc (Open Circuit Voltage): 49.93V
• Isc (Short Circuit Current): 14.30A
• Efficiency: 21.87%

Nominal Operating Cell Temperature (NOCT)

• Pmax (Maximum Power): 420W
• Vmp (Maximum Power Voltage): 38.74V
• Imp (Maximum Power Current): 10.85A
• Voc (Open Circuit Voltage): 47.13V
• Isc (Short Circuit Current): 11.55A

---

GENERAL SPECIFICATIONS

• Operating Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1000/1500VDC (IEC)
• Maximum Series Fuse Rating: 25A
• Power Tolerance: 0~+3%

---

TEMPERATURE COEFFICIENTS

• Temperature Coefficient of Pmax: -0.35%/°C
• Temperature Coefficient of Voc: -0.28%/°C
• Temperature Coefficient of Isc: +0.048%/°C

---

NOCT

• Nominal Operating Cell Temperature: 45°C ± 2°C
