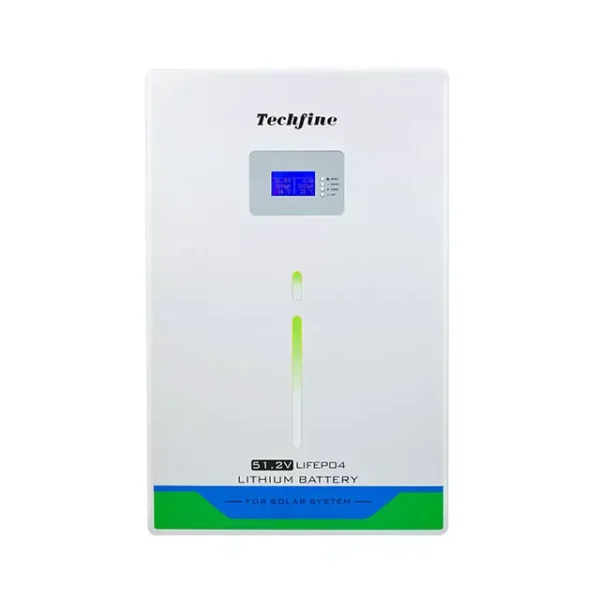

TECHFINE Lithium Battery 48V – 314Ah – 16Kwh REPT Cell

Battery Configuration

• Nominal Voltage: ~51.2 V (16 × 3.2 V LiFePO₄ cells in series)

• Nominal Capacity: ~314 Ah

• Nominal Energy: ~16 kWh (51.2 V × 314 Ah)

• Cell Type: Lithium Iron Phosphate (LiFePO₄), Grade-A prismatic cells (often listed as REPT class)

Voltage & Operating Range

• Operating Voltage Range: ~42 V – 58.4 V DC

• Recommended Charge Voltage: ~57.6 V – 58.4 V DC

• Cut-off Discharge Voltage: ~44 V – 44.8 V DC

Current & Power

• Standard Continuous Charge/Discharge Current: ~150 A (varies by BMS)

• Max Continuous Current: ~200 A

• Approx. Max Power: ~10–12 kW continuous (depends on configuration)

• Peak Power Capability: higher for short bursts depending on BMS design

Performance & Life

• Cycle Life: typically ≥6000 cycles at ~80–95% depth of discharge (DOD)

• Designed Life: ~10–15 years

• Depth of Discharge (DOD): ≥95%

Battery Management System (BMS)

• Protections: overcharge, over-discharge, overcurrent, short-circuit, cell balancing ★

• Communication: CANbus, RS485, RS232 compatible with many inverter brands ★

• Monitoring: SOC/SOH, temperature, cell-level voltages ★

Physical & Environmental

• Typical Weight: ~120–155 kg (varies by enclosure and cooling)

• Operating Temp Range: ~-20 °C to +60 °C (charging ~0 °C to +50 °C)

• IP Rating: generally indoor (IP20—varies by model)

• Parallel Expansion: Many systems support stacking up to 16 packs in parallel

---

Notes on Techfine Products

• Techfine’s official battery lineup includes 48 V LiFePO₄ packs up to ~14 kWh (300 Ah) and similar variants with LiFePO₄ cells and BMS features, but no specific “Techfine 16 kW 48 V REPT” PDF was publicly found on their website as of now.

• It’s possible that “REPT cell” refers to the cell manufacturer grade/type used inside such LiFePO₄ modules — similar to what some suppliers use (e.g., REPT, CALB, CATL, EVE).
