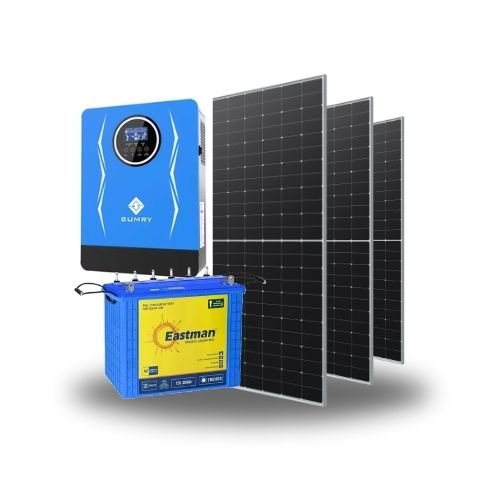

inverter Sumry 12V Features
Pure sine wave inverter
Programmable supply priority for PV , battery or Grid
High PV input voltage range(55~450VDC)
Built-in Max 110A(3.6KW&6.2KW) MPPT solar charge
Compatibe with lithium-ion battery
Support BMS communication with Lithium battery
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold start function
Intelligent fan speed adjustment
Built-in anti-dusk kit for harsh enviromen(optional)
WIFI&GPRS available for IOS and android
Battery Eastman 200A acid Features
General Overview:
- Brand: Eastman
- Model: Tubular Battery 12V-200AH
- Voltage: 12V
- Capacity: 200Ah (Ampere-Hours)
- Type: Tubular Plate Technology
- Application: Ideal for Solar Energy Systems, backup power solutions, and off-grid power setups.
Key Features:
- Long Battery Life: The Eastman Tubular Battery is designed for long-lasting performance, making it ideal for solar energy storage and backup power.
- Deep Discharge Capacity: It is designed to handle deep discharge cycles, making it well-suited for solar energy systems where consistent power storage and retrieval are needed.
- Maintenance-Free: Tubular batteries require low maintenance compared to flat plate batteries, making them more efficient and cost-effective in the long run.
- High Durability: The battery features a robust design and is ideal for use in challenging conditions. It is built to withstand harsh environments.
- Solar Integration: Designed to store solar power for use during non-daylight hours or in case of power outages.
Specifications:
- Voltage: 12V
- Capacity: 200Ah
- Battery Type: Tubular Lead Acid
- Technology: Tubular Plate Technology for better charge acceptance and extended battery life.
- Charging Voltage (Bulk): Typically around 14.4V-14.8V
- Float Voltage: Approximately 13.5V-13.8V
- Maximum Discharge Current: Typically 2.5 times the rated Ah (500A), depending on the model.
- Cycle Life: Typically 1200+ cycles at 50% discharge depth, depending on operating conditions.
- Efficiency: High energy efficiency with minimal self-discharge.
- Operating Temperature: Can operate in a temperature range of -10°C to 45°C.
- Electrolyte: The battery uses a liquid electrolyte solution (specific gravity typically 1.24-1.26 at 25°C).
- Dimensions: Approx. 520mm (L) x 240mm (W) x 235mm (H) (dimensions may vary depending on design).
- Weight: Typically 60-70kg, depending on the model.
Safety & Performance:
- Internal Resistance: Low internal resistance for better charging efficiency and faster discharge.
- Deep Discharge Recovery: The battery can recover well from deep discharges, offering higher reliability and longevity.
- Shock and Vibration Resistance: Designed to withstand vibration and mechanical shock, making it suitable for solar systems in various conditions.
- Certification: Generally certified with international standards (e.g., ISO, CE, etc.).
Advantages:
- Excellent for Off-Grid Use: Ideal for homes or businesses relying on solar energy.
- Power Backup: Stores energy for uninterrupted power supply during grid failures or at night.
- Sustainable Solution: Contributes to clean, renewable energy generation and reduces reliance on grid power.
Solar Panel Longi 580w Features
Mechanical Data
- Module Dimensions: 2278 x 1134 x 30 mm
- Weight: 27.5 kg
- Glass: Single glass, 3.2 mm coated tempered glass
- Junction Box: Split junction box, IP68, 3 diodes
- Cables: 4 mm², positive 400 mm / negative 200 mm, length can be customized
- Cell Orientation: 144 cells (6 x 24)
Electrical Characteristics
- Model: LR5-72HTH-580
- Max. Power: 580W
- Open Circuit Voltage: 52.21V
- Short Circuit Current: 14.20A
- Max. Power Voltage: 44.06V
- Max. Power Current: 13.17A
- Efficiency: 22.5%
