Features:
- Rated Power 5KW, power factor 1
- MPPT range 120V – 430V, 450Voc
- High frequency inverter with small size and light weight
- Pure sine wave AC output
- Solar and utility grid can power loads at the same time
- With CAN/RS485 for BMS communication
- With the ability to work without battery
- Parallel operation up to 6 unit (only with battery connected)
- WIFI/GPRS remote monitoring
General Specifications:

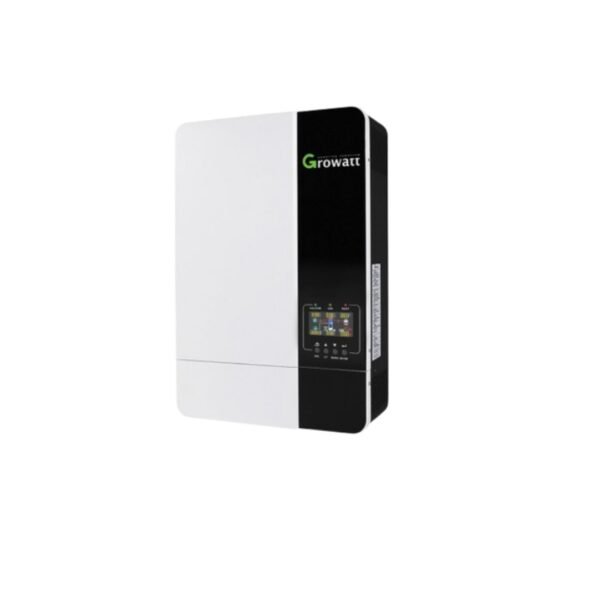

- Brand: Growatt
- Model: SPF 5000 ES
- Protection Degree: IP20
- Battery Voltage: 48V DC
- Size: (L330 x W485 x H135)mm
- Net Weight: 12Kgs
- Humidity: 5% to 95% Relative Humidity (non-condensing)
- Altitude: <2000m
- Operating Temperature: 0°C – 55°C
- Storage Temperature: -15°C – 60°C
Inverter Output:
- Battery Type: Lithium/ Lead-acid
- Rated Power: 5000VA/ 5000W
- Parallel Capability: 6 units maximum
- AC Voltage Regulation (Battery Mode): 10000VA
- Efficiency (Peak): 93%
- Waveform: Pure Sine Wave
- Transfer Time: 10ms typical, 20ms Max
Solar Charger:
- Maximum PV Array Power: 6000W
- MPPT Range @ Operating Voltage: 120V DC – 430V DC
- Number of independent MPP Trackers/ Strings Per MPP Tracker: 1/1
- Maximum PV Array Open Circuit Voltage: 450V DC
- Maximum solar Charge Current: 100A
AC Charger:
- Charge Current: 80A
- AC input Voltage: 230V AC
- Selectable Voltage Range: 170 – 280V AC (for personal computers); 90 – 280V AC (for home appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
Package Includes:
- 1 x Hybrid Solar Inverter
- 1 x Parallel Communication Cable
- 1 x Current Sharing Cable
- 1 x USB Communication Cable
- 1 x WIFI/GPRS Device
- 1 x User Manual
